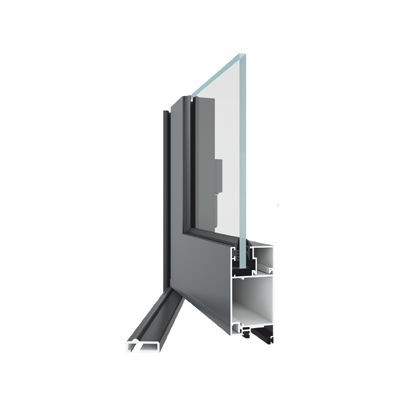

PBI 40E System

The system is dedicated to constructing partitions and other internal constructions, such as: doors, windows, partition walls, display windows and boxes that don’t require thermal insulation.

PBI 40E is suitable for application in residential buildings, public utility buildings and industrial facilities as internal partitions. Doors and windows of PBI 40E system may also be used outside, provided that there are no requirements concerning thermal insulation and water tightness, and the static calculations include wind load.

Brochure

Category:

Description

Advantages of the system

  • possibility of manufacturing smoke-proof constructions,
  • economic constructions for interiors of high aesthetic and utility standard,
  • possibility of manufacturing arched constructions,
  • possibility of setting the walls at any angle,
  • possibility of using the same fittings as in PBI 50N and PI 50N systems,
  • possibility of combination with other Yawal systems.



Technical Parameters

Operation force class 2 acc. to PN-EN 12046-2:2001
Mechanical life class 5 acc. to PN-EN 12400:2004
Smoke proof class Sa, S200 acc. to PN-EN 13501-2+A1:2010
Acoustic insulation Rw = 22-32 dB acc. to PN-B-02151-3:2015
Technical approval AT-15-6924/2016
